Order Pickers & Tractors

QDD301T

Nationwide After-Sales Support

Technical Specifications

Model

QDD301T

Type

Electric Tow Tractor

Load/Towing capacity

3000 kg

Drive

Electric (AC)

Operator type

Seated

Dimensions (L/W/H)

1945/1010-990/1335 mm

Wheelbase

1105 mm

Travel speed, laden/unladen

7/15 km/h

Turning radius

1780 mm

Max. gradeability, laden/unladen

3000 N

Max. drawbar pull, laden/unladen

7/25%

Battery voltage/nominal capacity

48V/240Ah (Lead-acid)

Service weight

1100 kg

Drive motor rating (S2 60 min)

4 kW

Recognition

CE Certified

Description product

Description product

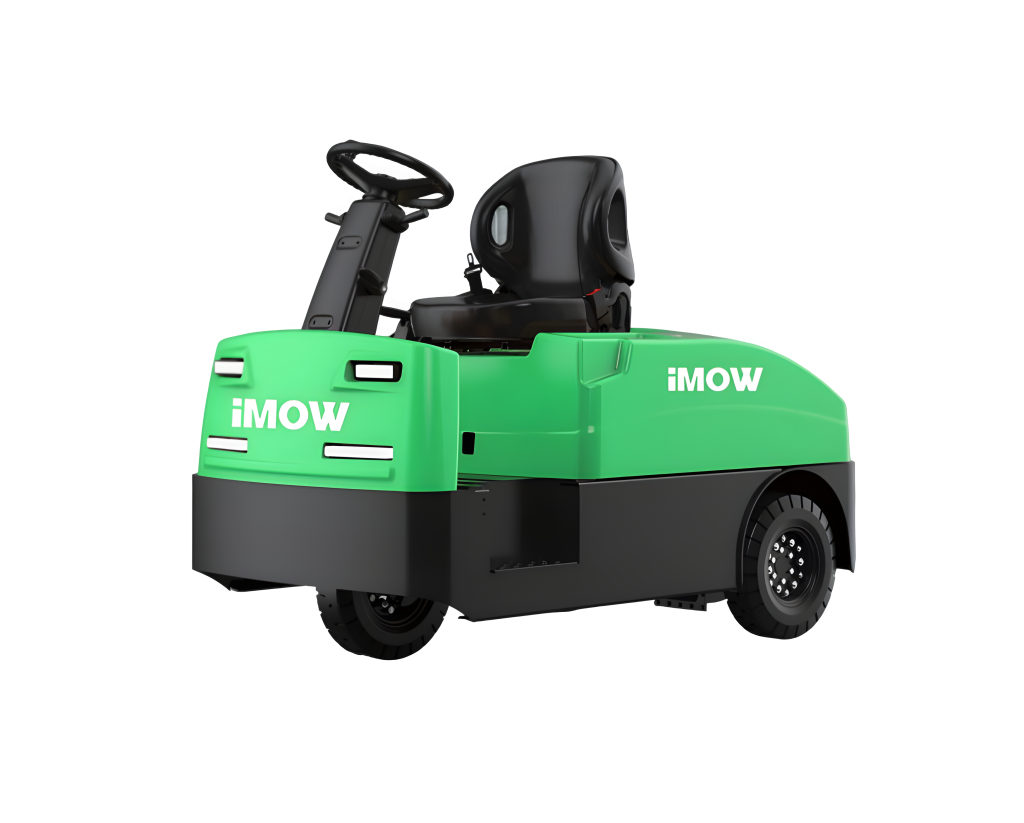

Ergonomic, stable towing power for indoor and outdoor use. The iMOW QDD301T is a 3-ton seated electric tow tractor with a user-centered design for operation comfort, big solid rubber tyres for varied terrain, and a low center of gravity for excellent stability.

3.0-Ton Electric Tow Tractor

Comfortable, Stable, and Built to Last

Spacious legroom, lower pedals, a lower operating console, and an adjustable steering wheel make the QDD301T easy to operate in confined spaces, while side-removal battery access and a one-piece cover design simplify daily maintenance. Big solid rubber tyres handle both flat ground and uneven surfaces in warehouses and logistics centers, with semi-enclosed and fully enclosed cabin options available for all-weather use.

Why the QDD301T?

User-centered ergonomic design — Spacious legroom, lower pedals, lower console, and adjustable steering wheel for confined-space comfort.

Indoor/outdoor versatility — Big solid rubber tyres for flat and uneven surfaces, with optional semi-enclosed or full cabins for all-weather conditions.

Low center of gravity — Ensures excellent stability for safety assurance.

Durable, market-proven components — Electric steering system and maintenance-free AC drive unit for reliable long-term performance.

Easy maintenance — Side-removal battery and one-piece cover design simplify daily upkeep.

Ideal Applications

Suited for towing loads across both indoor and outdoor environments, including uneven surfaces in warehouses, production facilities, and logistics centers.
