Order Pickers & Tractors
QDD10T
Nationwide After-Sales Support
Technical Specifications
Model
QDD10T
Type
Electric Tow Tractor
Load/Towing capacity
1000 kg
Drive
Electric (DC)
Operator type
Standing
Dimensions (L/W/H)
1280/620/1230 mm
Wheelbase
967 mm
Travel speed, laden/unladen
4.5/5 km/h
Max. drawbar pull, laden/unladen
312 N
Max. gradeability, laden/unladen
3/16%
Battery voltage/nominal capacity
24V/20Ah (Li-ion)
Service weight
125 kg
Drive motor rating (S2 60 min)
0.8 kW
Recognition
CE Certified
Description product
Description product

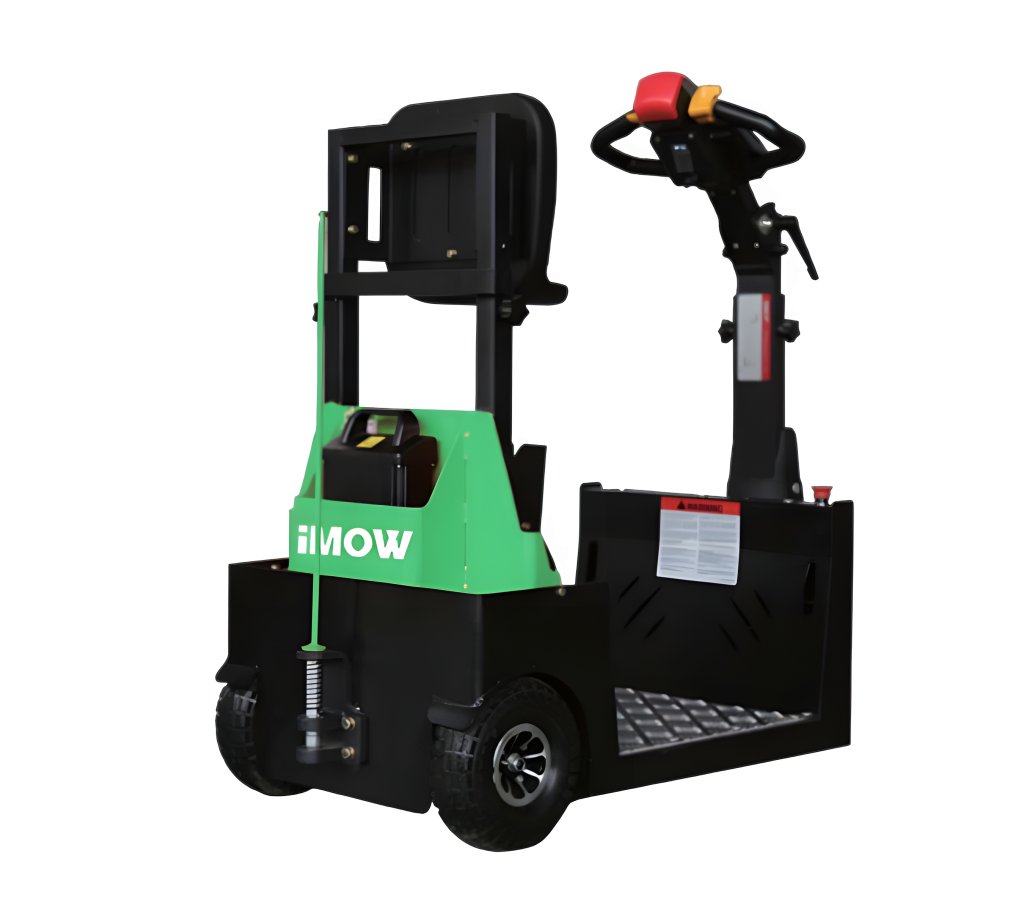

Compact and comfortable towing power. The iMOW QDD10T is a 1.0-ton electric tow tractor equipped with a lithium battery that’s convenient to charge and easy to replace, in a lighter, narrower build suited to varied working conditions.
1.0-Ton Electric Tow Tractor
Compact, Convenient, and Comfortable to Operate
Equipped with lithium batteries for convenient charging and easy replacement, plus a high-torque electromagnetic brake for safe, effective stopping power. Its lighter, narrower, and smaller design suits different working conditions, while four-way control of the operation handle makes operation more comfortable, and an adjustable backrest fits drivers of different shapes.
Why the QDD10T?
Lithium battery convenience — Easy to charge and replace, supporting flexible operation.
Compact and lightweight — Lighter, narrower, and smaller build fits a variety of working conditions.
Four-way handle control — Makes operation more comfortable across different tasks.
Adjustable backrest — Suits drivers of different shapes for improved comfort.
High-torque electromagnetic brake — Safe and effective stopping performance.
Ideal Applications
Suited for towing light loads through varied working conditio
